Product Description

Product Display

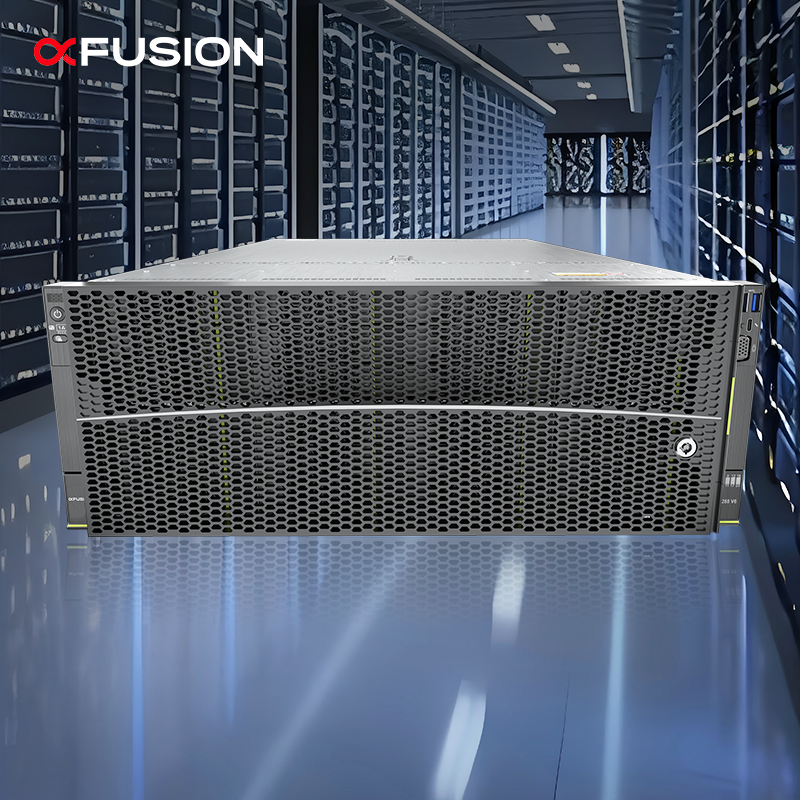

FusionServer 5288 V6 4U rack server
FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processors, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4 U space. Integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.

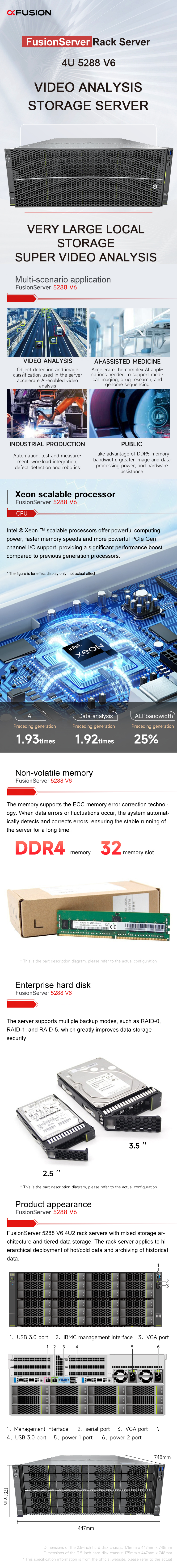

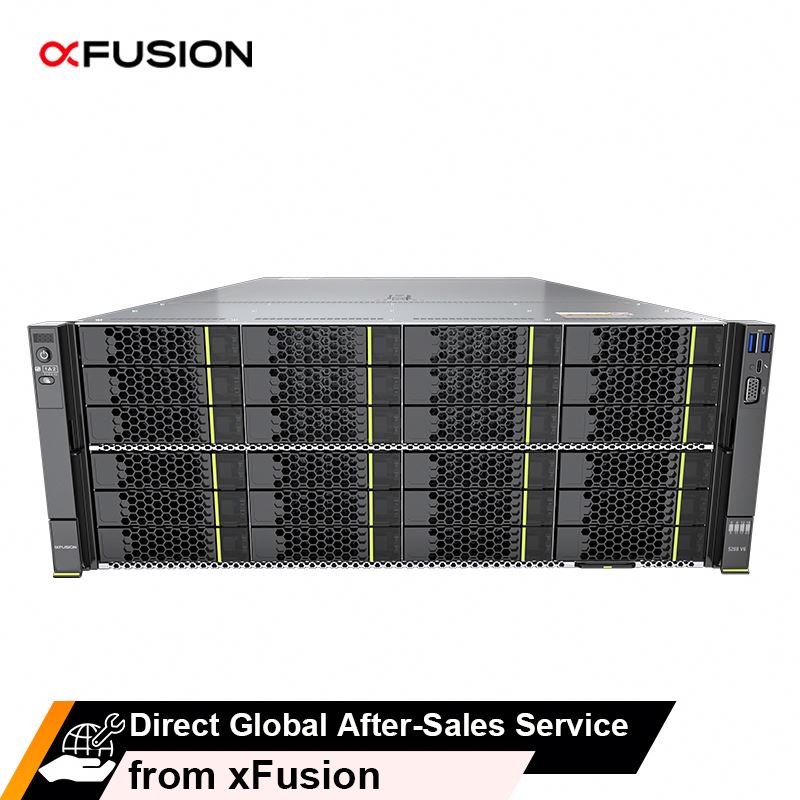

FusionServer 5288 V6 Front View

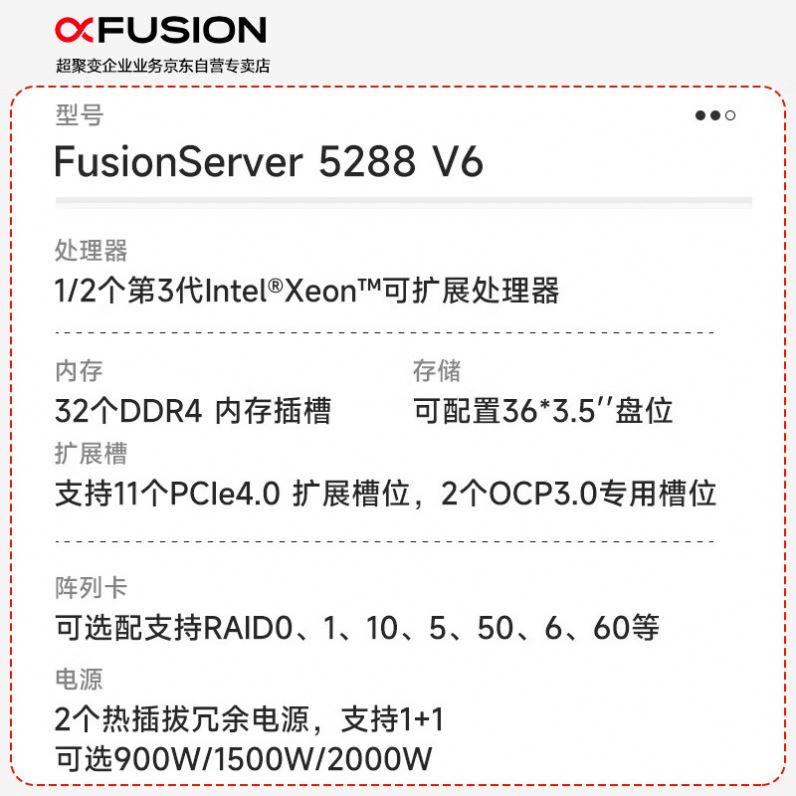

Product Parameters
Server Model FusionServer 5288 V6
Form Factor 4U Rack Server
Processors 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W
Local Storage Various hard disk configurations are supported. The hard disks are hot swappable:
• 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs
• 24 x 3.5-inch SAS/SATA front hard disks
• 4 3.5-inch SAS/SATA internal hard disks
• 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks
• 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5″ HDDs + 4 x 2.5″ SAS/SATA/NVMe)
Flash storage:
• Dual M.2 SSDs

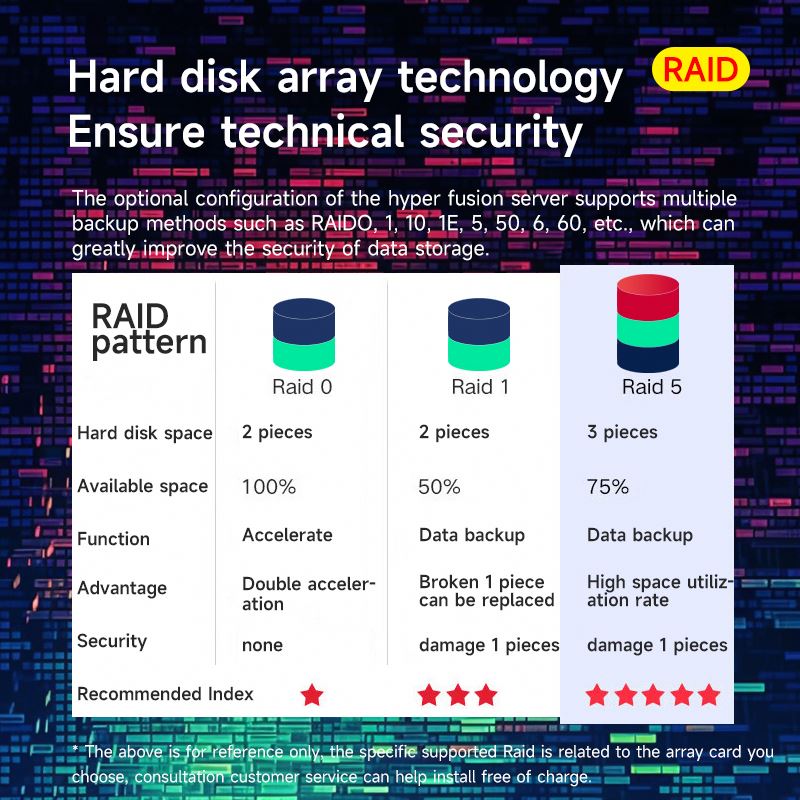

RAID support Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities
Network OCP 3.0 NIC
The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required
Supports multiple OCP 3.0 NICs
Supports hot swap
PCIe Expansion A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OCP3.0, and eight standard PCIe 4.0 slots
Chip Set Intel® C621A
Fan Modules Four hot-swappable fans, supporting N+1 redundancy
Height X Width X Depth Chassis dimensions: 175 mm x 447 mm x 790 mm
Power Supply Units 2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows:
• 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC)
• 1500 W AC Platinum PSU
• 1000 W (input: 100 V AC to 127 V AC)
• 1500 W (input: 200–240 V AC or 192–288 V DC)
• 2000 W AC Platinum PSU
• 1800 W (input: 200–220 V AC or 192–200 V DC)
• 2000 W (input: 220–240 V AC or 200–288 V DC)

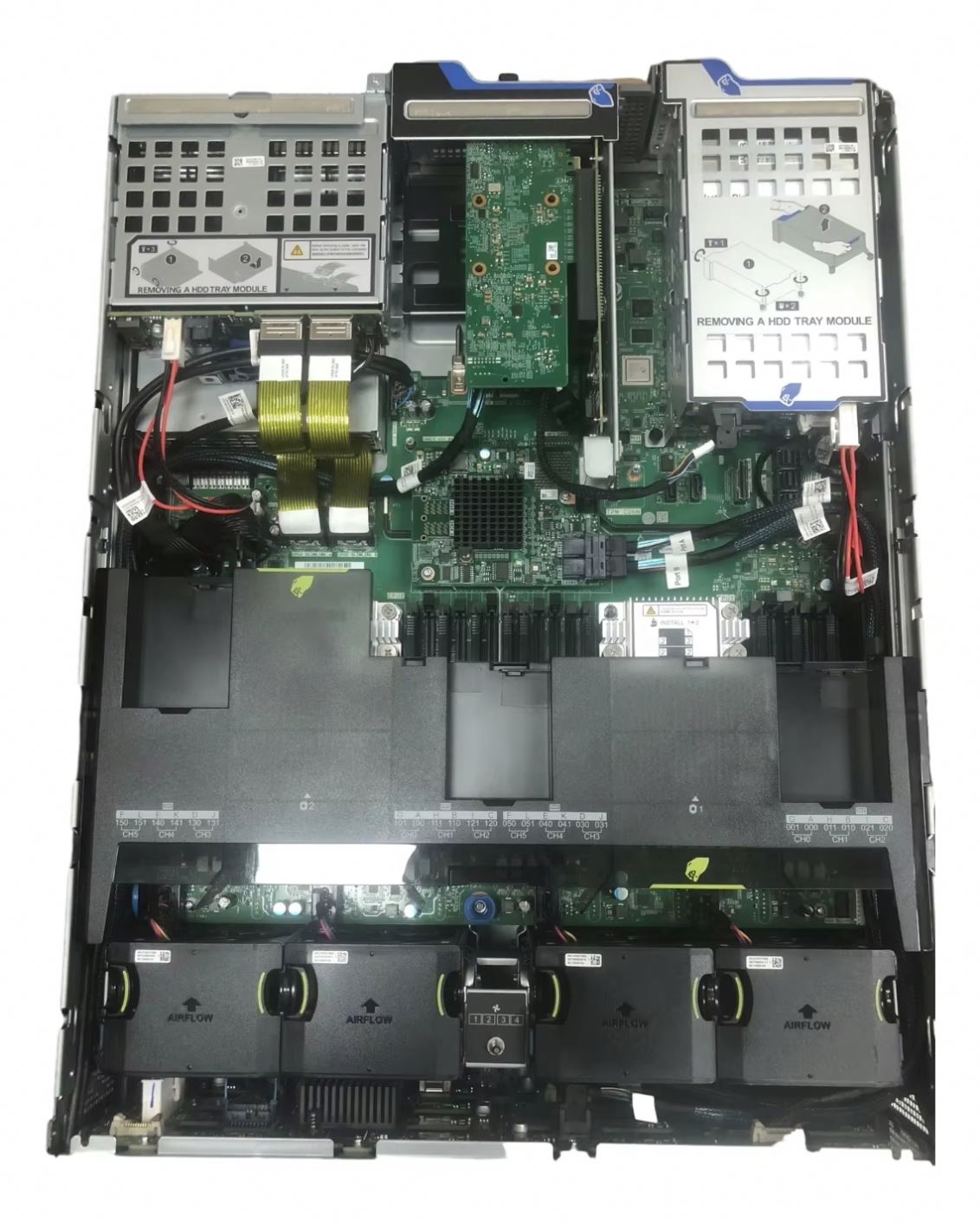

FusionServer 5288 V6 Detail View
Profile
Office and Infrastructure
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners, we provide:
Key Hardware Offerings:
  • Computing servers
  • Network storage
  • Network switches
  • CPU, RAM, HARD DRIVES, and other accessories
Exhibition & Logistics
International Exhibition Booth
Packing & Delivery
Professional Packaging Process
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
1 When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you require urgent pricing, please highlight this in your inquiry and we will prioritize it.
2 What warranties are provided on products?
Our whole machine products include a 3-year replacement warranty. We maintain a complete and robust supply chain to efficiently handle all after-sales support and parts replacement.
3 Are the components original and quality tested?
Yes, all memories and components are from original brand chips. We conduct strict hardware verification and system testing on all items prior to delivery.
4 What payment methods do you accept?
We accept secure credit card payments, direct bank wire transfers (T/T), Alipay, and other standard global trade payment channels.
5 What is the minimum order quantity (MOQ) for custom OEM projects?
Different product lines have different minimum order quantities. Please contact us with your detailed requirements, and we will do our best to accommodate both small batch orders and large scale deployments.
6 How do your prices compare to local market prices?
We specialize in infrastructure hardware at competitive pricing. While external hardware structures may appear identical, internal configuration components and tier-level qualities dictate the pricing. We prioritize long-term business relationship values via premium quality component standards.
