Vornaxis
Vornaxis

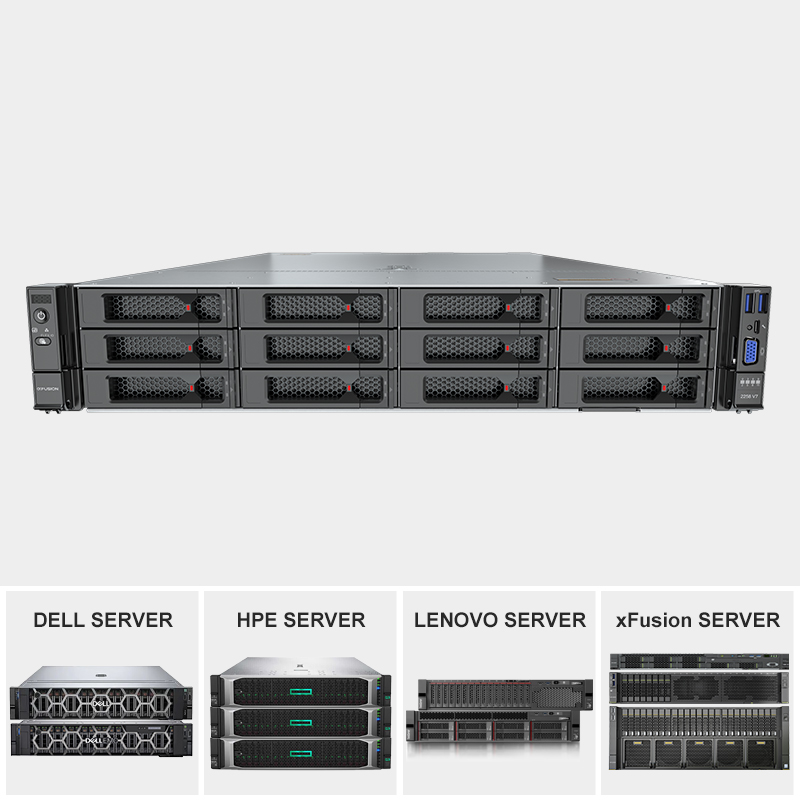

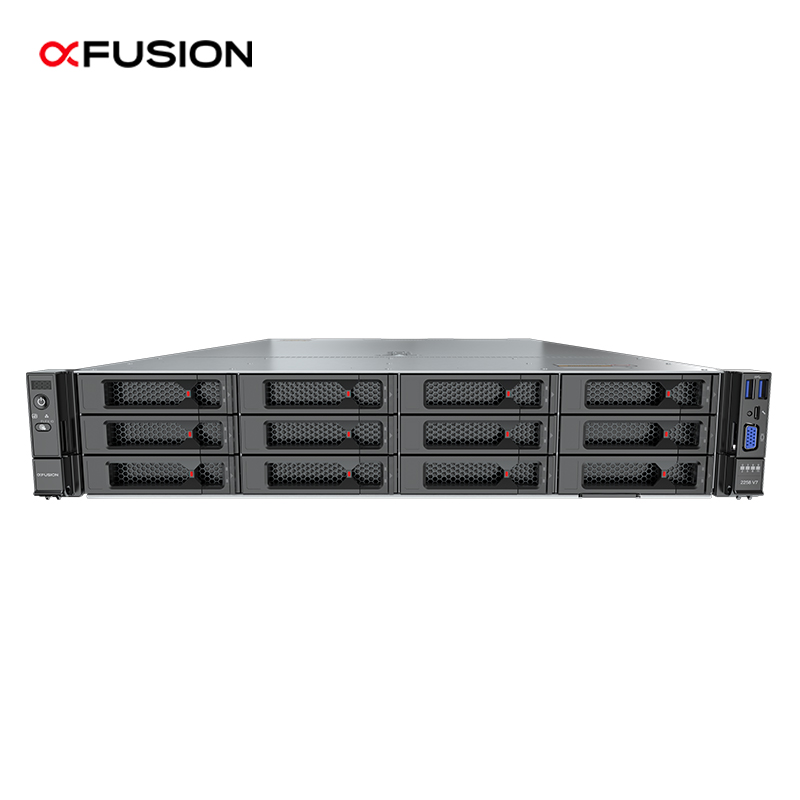

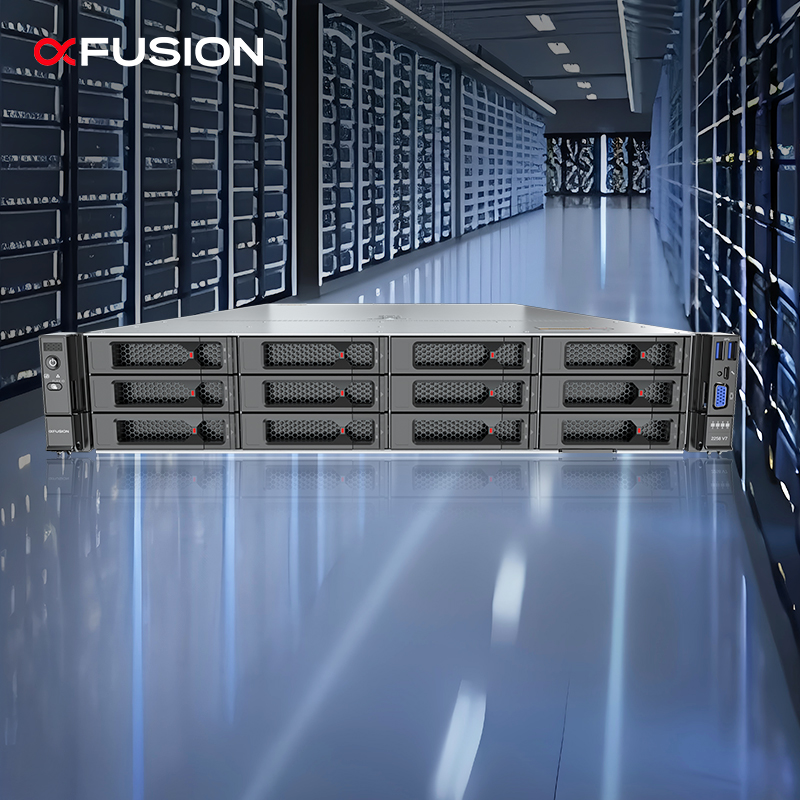

| Server Model | FusionServer 2258 V7 |
| Form Factor | 2U rack server |
| Memory | 12 or 24 x DDR5 memory slots are flexible and optional, with up to 4800 MT/s speed |
| Storage |
Hot-swappable drives with the following configuration options are supported: • 8 x 2.5-inch SAS/SATA drives • 12 to 16 x 3.5-inch SAS/SATA drives • 24 x NVMe SSD drives* 12 x 2.5-inch drives(including 8 x NVMe drives* • 25 x 2.5-inch SAS/SATA drives* Supports flash storage: • 2 x M.2 SSDs(supporting SATA/NVMe) |

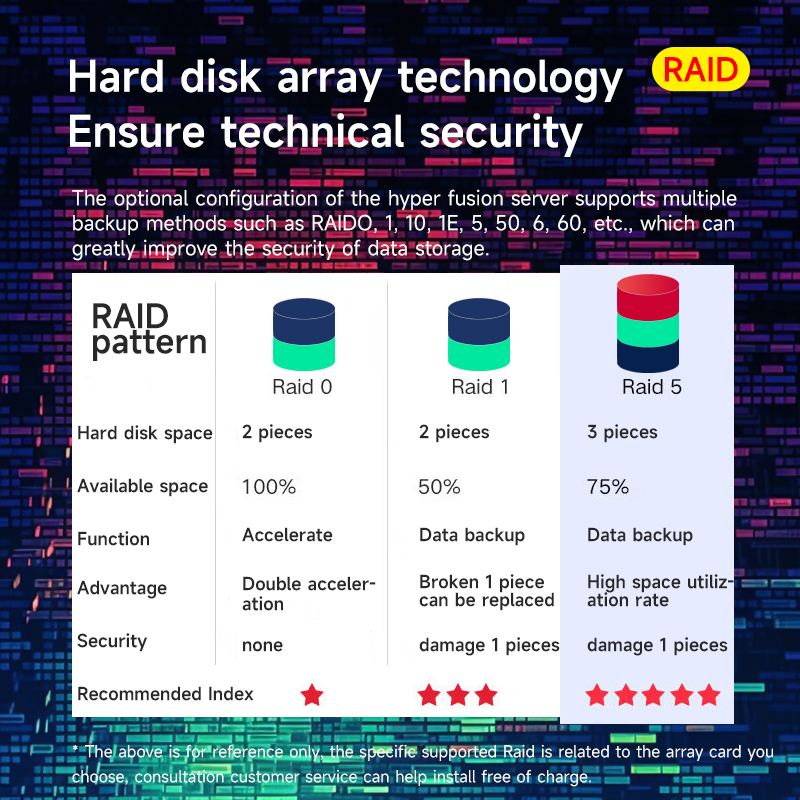

| RAID | Optional support RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., support Cache super capacitor protection, provide RAID level migration, disk roaming, self-diagnosis, Web remote setting and other functions |
| Network | Support multiple network expansion capabilities. Support OCP 3.0 network card, support on-demand configuration; support hot swap, support PCIe 5.0 |
| PCIe Expansion | Up to 23 x PCIe slots, including 20 x standard PCIe slots, 2 x OCP 3.0 slots, and 1 x built-in RAID controller card slot |
| GPU Accelerator Card | Support 2 x double-width GPU accelerator cards or 8 x single-width GPU accelerator cards |
| Fan Module | Provides 4 x hot-swappable counter-rotating fan modules in N+1 redundancy. |
